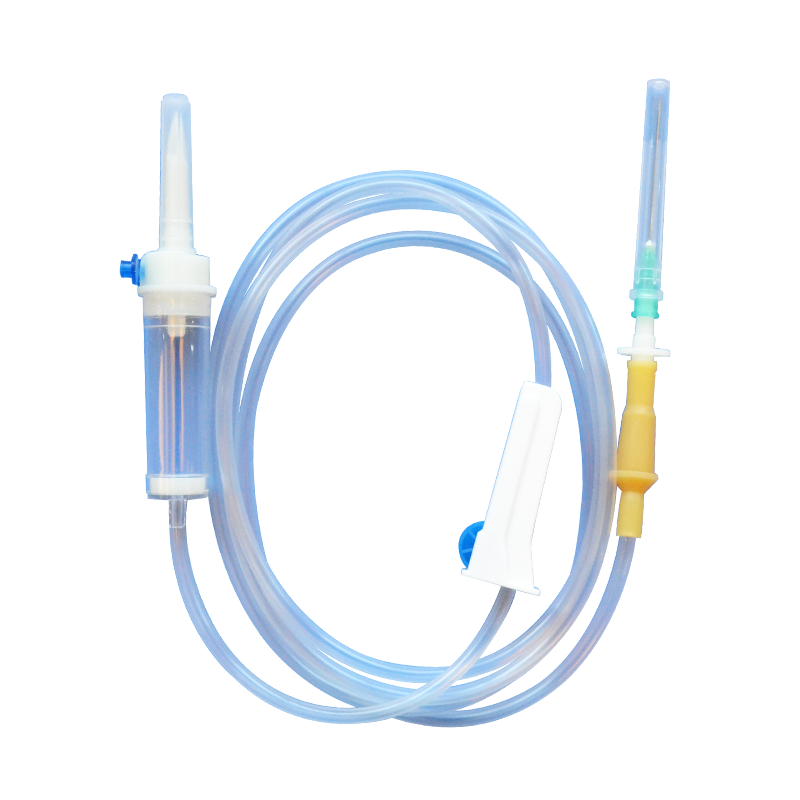

Infusion Set

Universal Deign IV administration sets with/without air vent for gravity infusion and pressure infusion (Pressure Resistant up to 2 bar)

BASIC PRODUCTS FEATURES :

User-Friendly Design with Flexible Drip Chamber

• Standard piercing spike (Vented, Universal)
• Easy penetration of solution container and preventing contamination.
• 15 micron filter provides high flow rate and protection against large particles.
• Transparent drip chamber allow for quick & easy visualization of drip rate.

Soft, Kink Resistant, Clear P.V.C. Tubing

• Standard lumen ID 3 mm & OD 4.1mm.
• Standard length 150cm with option of 180cm & bigger Length.
• DEHP Free plasticizer.

Y Connector Injection Site with option of Needle Free Injection site.

• Well documented safety characteristics
• Latex free injection site allows easy injection access.
• Also available with needle free injection site.

Luer Lock Turn-Tight Fitting

• Avoid unintended detachment.

NON-Vented
General Product Specification
• Standard lumen ID 3mm & 4.1 mm
• DEHP Free plasticizer
• Max Flow Rate = 20ml/min
• Standard drop formation, 20 Drops=1ml
• Well documented safety characteristics
• Shelf life of 5 Years from manufacturing
• Regular length 150cm, subject to customer requirement.
• Available with both EO/Gamma Sterilization, Depending on customer requirements.
• Also available with 60 drops = 1ml

Store Guideline :

• Store at room temperature in dry place, away from direct sunlight.

PACKING :

• 20’FT Container = 220 Cartons
• 40’ FT Container = 475 Carton
• 40’ FT HQ Container = 525 Carton
• Quantity Per Carton = 1000 Pcs (100 Pieces/Poly Bag)
• Length (CM) = 66
• Width (CM) = 47.3
• Height (CM) = 42
