Cannula

Product Name : IV Cannula (Catheter) with wings and injection port

• Injection port
• Flexible wings
• Ultra sharp universal bevel
• Radio opaque lining
• Flexible insertion angles

FEATURES :

ULTRA SHARP SILICONISED SS NEEDLE : Siliconized, Ultra Sharp, Stainless Steel, back – cut needle to perform easy and painless venipuncture.

CATHETER : Available in FEP, PUR and PTFE material. Siliconized with proprietary technology ensuring smooth surface and minimal discomfort for both patient and clinical.

FLASHBACK CHAMBER : Large FB chamber allow quick visualization for successful venipuncture.

FLEXIBLE WINGS : The flexible wings provides easy gripping and follows the contours of site allowing more secure fixation.

NEEDLE COVER : Transparent Needle cover to prevent accidental damage to needle and catheter.

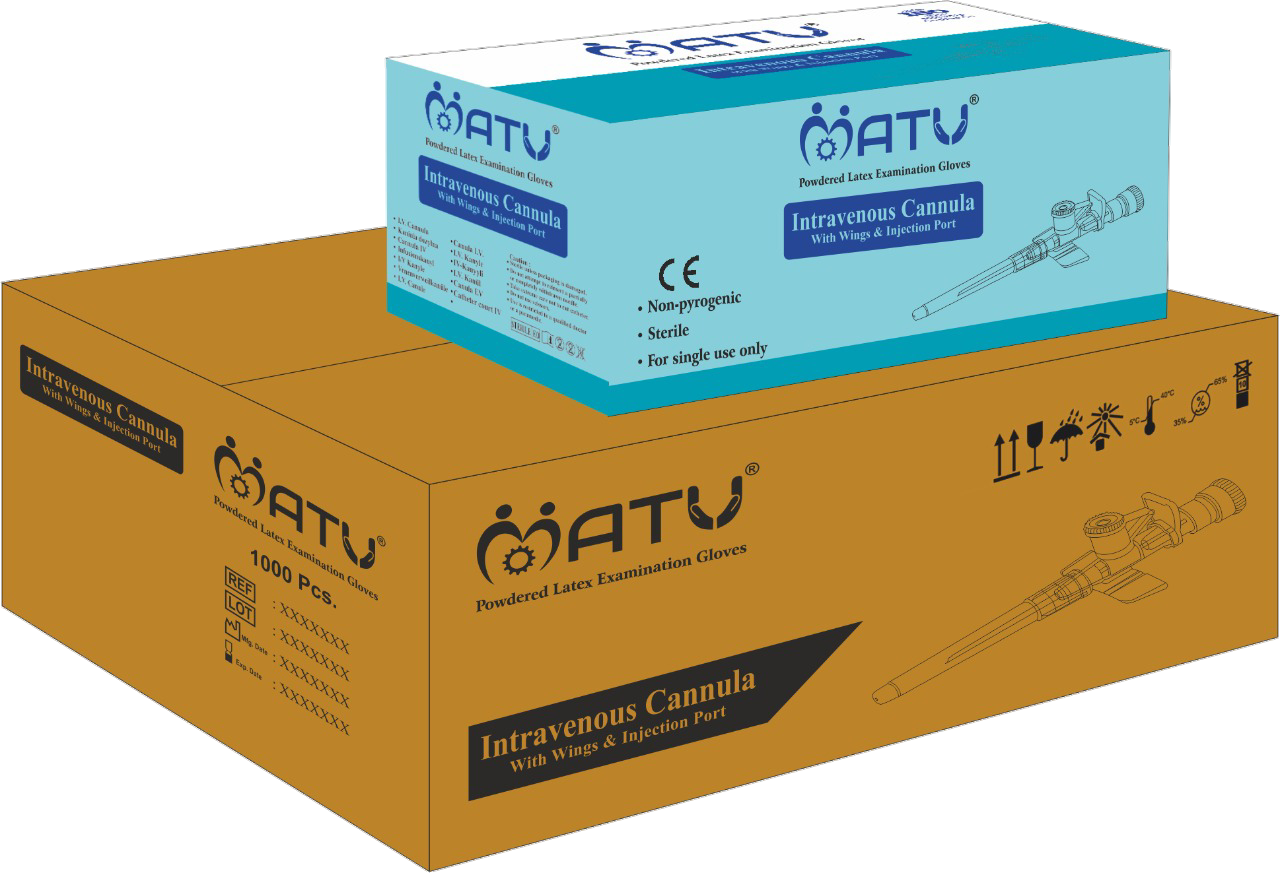

Packing :

• 20’FT Container = 700 Cartons
• 40’ FT Container = 1450 Carton
• 40’ FT HQ Container = 1650 Carton
• Quantity Per Carton = 1000 Pcs (10 Boxes/ Carton, 100 InnerBoxes/Box)
• Length (CM) = 69.5
• Width (CM) = 32.5
• Height (CM) = 18.5

Size	Catheter Length(mm)	Catheter OD (mm)	Flow rate(Water) (ml/min)
14 G	45	2.1	270
16 G	45	1.8	200
17 G	45	1.5	125
18 G	45	1.3	90
20 G	32	1.1	60
22 G	25	0.9	36
24 G	19	0.7	23
26 G	19	0.6	15

Product Name : IV Cannula (Catheter) with wings and injection port

Product Name : IV Cannula (Catheter) with wings and without injection port

• Flash Back Chamber
• Flexible Wings
• Ultra Sharp Universal Bevel
• Radio opaque lining
• Flexible insertion angles

FEATURES :

ULTRA SHARP SILICONISED SS NEEDLE : Siliconized, Ultra Sharp, Stainless Steel, Back – cut Japanese technology needle to perform easy and painless venipuncture.

CATHETER : Available in FEP, PUR and PTFE material. Siliconized with proprietary technology ensuring smooth surface and minimal discomfort for both patient and clinical.

FLASHBACK CHAMBER : Large FB chamber allow quick visualization for successful venipuncture.

FLEXIBLE WINGS : The flexible wings provides easy gripping and follows the contours of site allowing more secure fixation.

NEEDLE COVER : Transparent Needle cover to prevent accidental damage to needle and catheter.

PACKING :

• 20’FT Container = 700 Cartons
• 40’ FT Container = 1450 Carton
• 40’ FT HQ Container = 1650 Carton
• Quantity Per Carton = 1000 Pcs (10 Boxes/ Carton, 100 InnerBoxes/Box)
• Length (CM) = 69.5
• Width (CM) = 32.5
• Height (CM) = 18.5

Size	Catheter Length(mm)	Catheter OD (mm)	Flow rate(Water) (ml/min)
14 G	45	2.1	270
16 G	45	1.8	200
17 G	45	1.5	125
18 G	45	1.3	90
20 G	32	1.1	60
22 G	25	0.9	36
24 G	19	0.7	23
26 G	19	0.6	15
